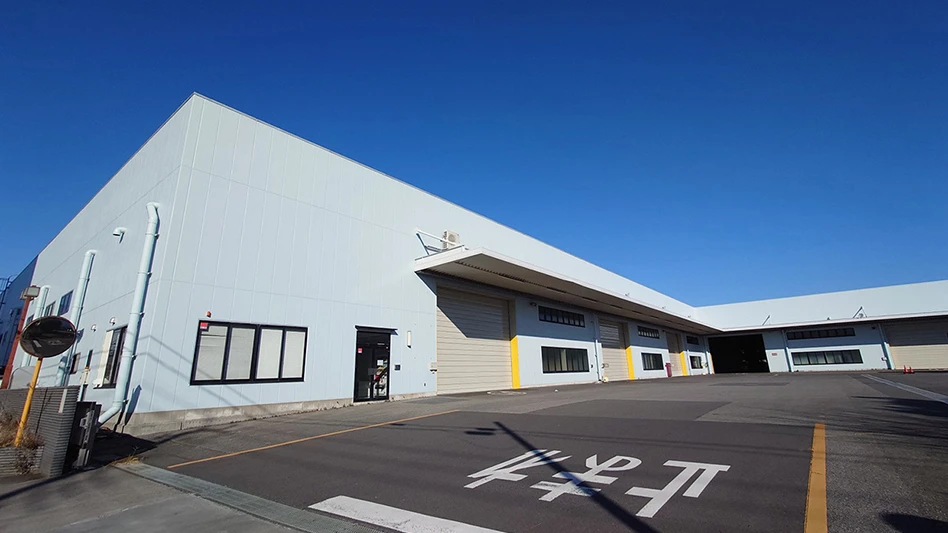

Nikon launches Nikon AM Technology Center Japan in Gyoda, Saitama Prefecture

Nikon Corporation (Nikon) is pleased to announce the opening of its Nikon AM Technology Center Japan in Gyoda, Saitama Prefecture, which will be unveiled to invited guests at a Grand Opening ceremony on February 28, 2025. This facility marks another milestone in the Nikon Advanced Manufacturing plan to revolutionize manufacturing while enabling and scaling the industrial base using cutting-edge solutions from Nikon.

This month’s launch of the Nikon AM Technology Center Japan follows the July 2024 opening of the premier Nikon AM Technology Center in Long Beach, California, USA. Like the California location, the facility in Japan brings together the Nikon AM portfolio and consolidates a diverse and specialized team dedicated to driving success for Nikon and its clients and partners. Nikon AM Technology Center Japan is similarly equipped with the industry-leading ultra-large format NXG XII 600 laser powder bed fusion (L-PBF*1) system from Nikon SLM Solutions AG, the first of its kind system in Japan. The NXG series utilizes 12 lasers with a build platform that, depending on the model, allows printing parts up to a maximum of 1.5m and will be pivotal in enabling the most demanding AM applications, especially for the defense, space and aviation sectors. Nikon AM Technology Center Japan will also feature Nikon organically developed high-precision directed energy deposition (DED*2) systems including the Lasermeister LM300A for repair and sustainment applications for a variety of industries, X-ray CT inspection equipment, and other critical solutions to catalyze metal AM technology development and processing for customers in Japan and Asia.

The opening of this facility furthers Nikon’s Vision 2030 strategy to be a key technology solutions company in a global society where humans and machines co-create seamlessly, with Digital Manufacturing being a pillar of growth in this plan.
